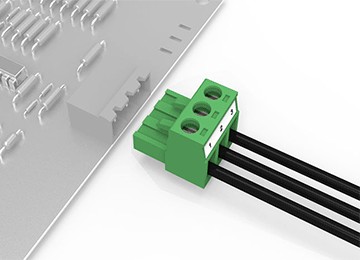

  • LC1-5.08-3P
  • Rated voltage(v):
    320
  • Rated current(A):
    17.5
  • Wire Size(m㎡):
    2.5
  • Wire Size(AWG):
    24-12
  • Single/multi-core diameter(m㎡):
    0.2-2.5
  • Maximum tightening torque(Nm):
    0.5-0.6
  • Screw:
    M3
  • Strip length:
    7
  • Resistant voltage(kv):
    4
  • Insulation Resistance:
    PA/V0
  • Poles(P):
    3

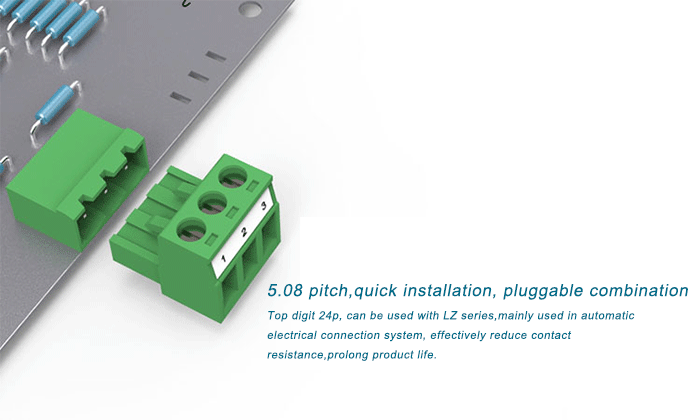

Product Advantage:

Small space , save space

 Low structural height

 Big connection capacity, can connect flexible conductor of 2.5mm² cross-sectional area

■ Deliver time 3 to 7 days

electric connectors



terminal connector

terminal board

Assembly of LC1-5.0/5.08:





 LZ1R-5.0/5.08 terminal blocks LZ1RK-5.0/5.08 terminal blocks   LZ1V-5.0/5.08 terminal blocks  LZ1VK-5.0/5.08 terminal blocks LZ2D-5.0/5.08 terminal blocks
LZ2DK-5.0/5.08 terminal blocks   LC18-5.08 terminal blocks  LZ3RH-5.0/5.08 terminal blocks LZ3RT-5.0/5.08 terminal blocks  LZ3RTK-5.0/5.08 terminal blocks
 LZ5M-5.0/5.08 terminal blocks  LZ3VT-5.0/5.08 terminal blocks  LZ3VH-5.0/5.08 terminal blocks LC19U-5.08 terminal blocks   LC19Y-5.08 terminal blocks



Product Applications Scenarios:
