  • LZ2DK-5.0/5.08
  • Rated voltage(v):
    320
  • Rated current(A):
    17.5
  • Resistant voltage(kv):
    4
  • Insulation Resistance:
    PA/V0
  • Poles(P):
    2-24

Products Description:

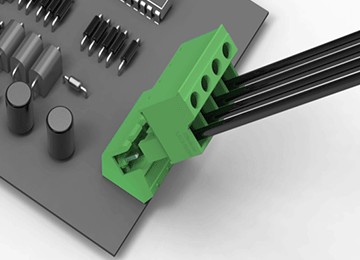

The angle of the socket direction and PCB is 45 degrees. It is easy to operate when the space is limited, and it will not occupy the entire horizontal space. The side can be with a screw or without screw bit. The side is divided into closed and not closed type.

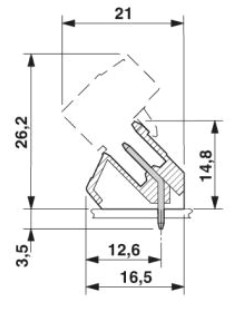

Diagram and parameter description:







Assembly of LZ2DK-5.0/5.08:



LC1-5.0/5.08 terminal blocks LC2A-5.0/5.08 terminal blocks LC2B-5.0/5.08 terminal blocks LC3-5.0/5.08 terminal blocks LC4-5.0/5.08 terminal blocks
LC5-5.0/5.08 terminal blocks LC6-5.0/5.08 terminal blocks LC6H-5.0/5.08 terminal blocks LC7A-5.0/5.08 terminal blocks LC7B-5.0/5.08 terminal blocks
LC9-5.08 terminal blocks LC12V-5.08 terminal blocks LC12R-5.08 terminal blocks LC13-5.08 terminal blocks LC17-5.08 terminal blocks
LC15-5.0/5.08 terminal blocks LC16-5.0/5.08 terminal blocks LC17U-5.08 terminal blocks LC14-5.0/5.08/3.81 terminal blocks
