- LZ5M-5.0/5.08
-
Rated voltage(v):320
-
Rated current(A):17.5
-
Wire Size(m㎡):2.5
-
Wire Size(AWG):24-12
-
Single/multi-core diameter(m㎡):0.2-2.5/0.2-2.5
-
Resistant voltage(kv):4
-
Insulation Resistance:PA/V0
-
Poles(P):2-24
Products Description:

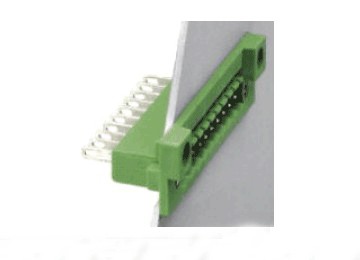

LZ5 can through the shell and be fixed with screws on the shell. The plug is connected with it on the outside of the instrument, to match the seismic connetion. LZ5X can be used in conjunction with the LC10 series;
Diagram and parameter description:
Assembly of LZ5M-5.0/5.08:
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
