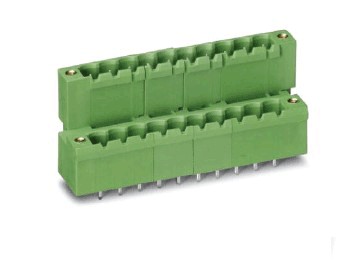

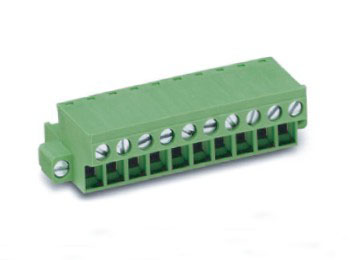

  • LZ3VTM-5.0/5.08
  • Rated voltage(v):
    320
  • Rated current(A):
    17.5
  • Resistant voltage(kv):
    4
  • Insulation Resistance:
    PA/V0
  • Poles(P):
    2-24


Products Description:


The top and bottom of H-type are the same. The top and bottom of T-type are staggered. They can be connected on the PCB or external, such as shell inlay. The direction is horizontal or vertical. The side can be with screw or without screw position. The side is divided into closed and not the closed.


Diagram and parameter description:

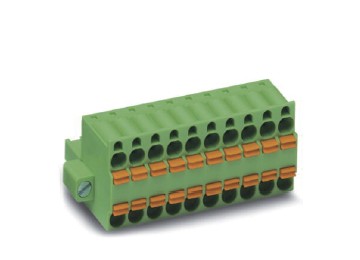

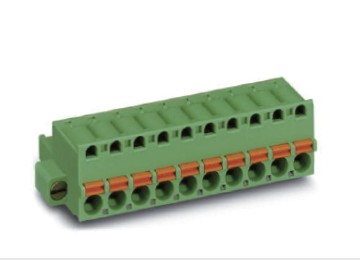

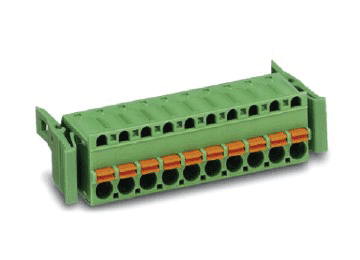

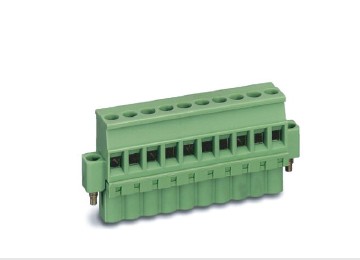

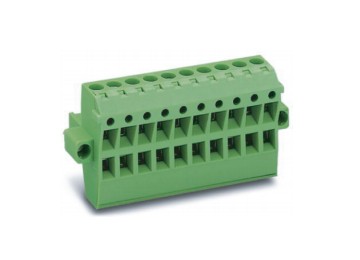

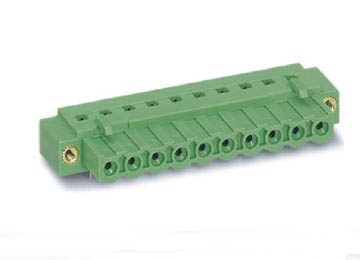

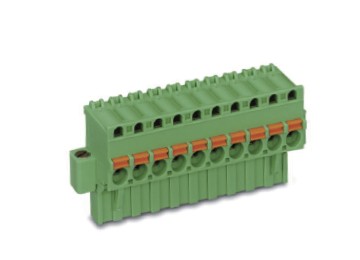

Assembly of LZ3VTM-5.0/5.08:

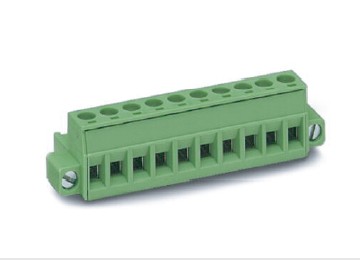

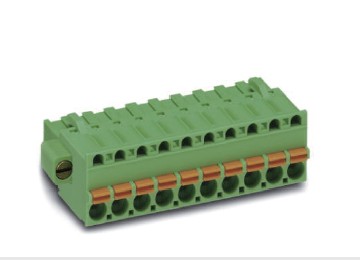

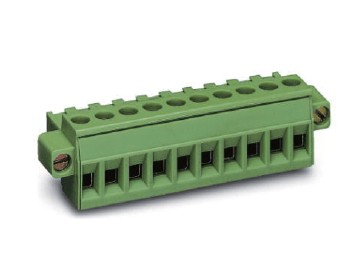

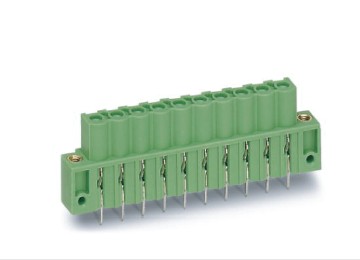

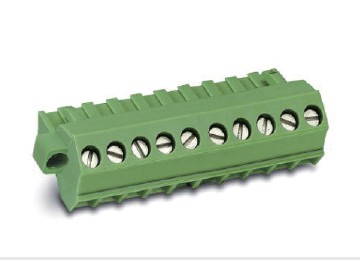

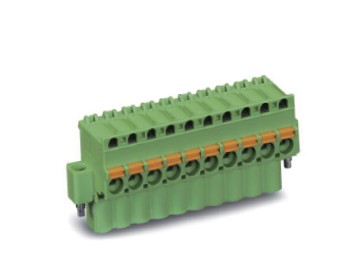

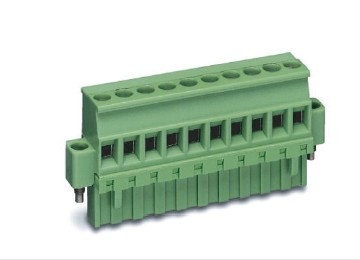

LC1M-5.0/5.08 terminal blocks LC2AM-5.0/5.08 terminal blocks LC2BM-5.0/5.08 terminal blocks LC3M-5.0/5.08 terminal blocks LC4M-5.0/5.08 terminal blocks
LC5M-5.0/5.08 terminal blocks LC6M-5.0/5.08 terminal blocks LC6MJ-5.0/5.08 terminal blocks LC6HM-5.0/5.08 terminal blocks LC7AM-5.0/5.08 terminal blocks
LC7BM-5.0/5.08 terminal blocks LC9M-5.08 terminal blocks LC12VM-5.08 terminal blocks LC12RM-5.08 terminal blocks LC13M-5.08 terminal blocks
LC17UM-5.08 terminal blocks
