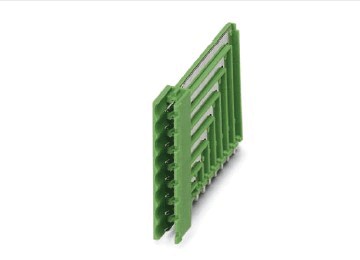

  • LZ4K-5.08
  • Rated voltage(v):
    320
  • Rated current(A):
    8
  • Resistant voltage(kv):
    4
  • Insulation Resistance:
    PA/V0
  • Poles(P):
    2-24


Products Description:




LZ4 products can save the wiring space. The pin bents with 90 degrees, and is perpendicular to the PCB, to save more space.

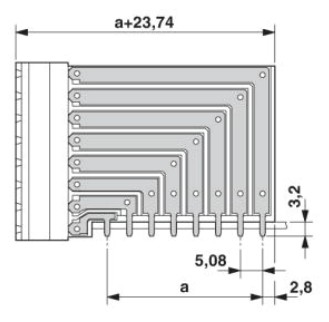

Diagram and parameter description:







Assembly of LZ4K-5.08:
