  • LZ5M-3.81
  • Rated voltage(v):
    160
  • Rated current(A):
    8
  • Wire Size(m㎡):
    1.5
  • Wire Size(AWG):
    28-16
  • Single/multi-core diameter(m㎡):
    0.14-1.5/0.14-1.5
  • Resistant voltage(kv):
    2.5
  • Insulation Resistance:
    PA/V0
  • Poles(P):
    2-24


Products Description:

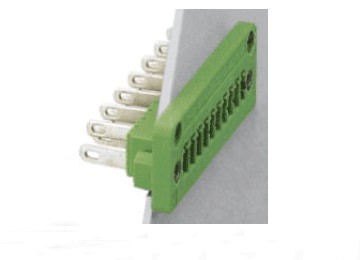

plug-in terminal block



Product Advantage



▇ Small space , save space

▇ Low structural height

▇ Big connection capacity, can connect flexible conductor of 2.5mm2 cross-sectional area

▇ The plug socket identity protection



terminal block connectors

connectors



Aseembly of LZ5M-3.81:



LC1M-3.5/3.81 terminal blocks  LC3M-3.81 terminal blocks LC2BM-3.5/3.81 terminal blocks   LC2AM-3.5/3.81 terminal blocks  LC6M-3.5/3.81 terminal blocks
