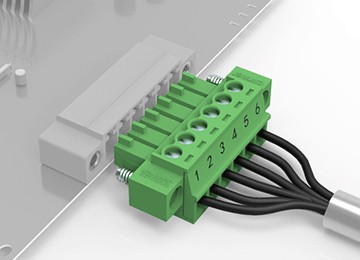

  • LC1M-3.5/3.81
  • Rated voltage(v):
    160
  • Rated current(A):
    8
  • Wire Size(m㎡):
    1.5
  • Wire Size(AWG):
    28-16
  • Single/multi-core diameter(m㎡):
    0.08-1.5
  • Maximum tightening torque(Nm):
    0.22-0.25
  • Screw:
    M2
  • Strip length:
    7
  • Resistant voltage(kv):
    2.5
  • Insulation Resistance:
    PA/V0
  • Poles(P):
    2-24

 LC Series pluggable terminal blocks:



The insert direction of LC1 Series products is perpendicular to the wires. The plugs snap each other to save space.Because of the insert direction, the wire will not be squeezed while pushing or pulling of the plugs.Note: The plug can only be charged in the case of non-operation.

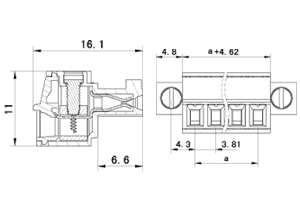

Diagram and parameter description:





Assembly of LC1M-3.5/3.81:

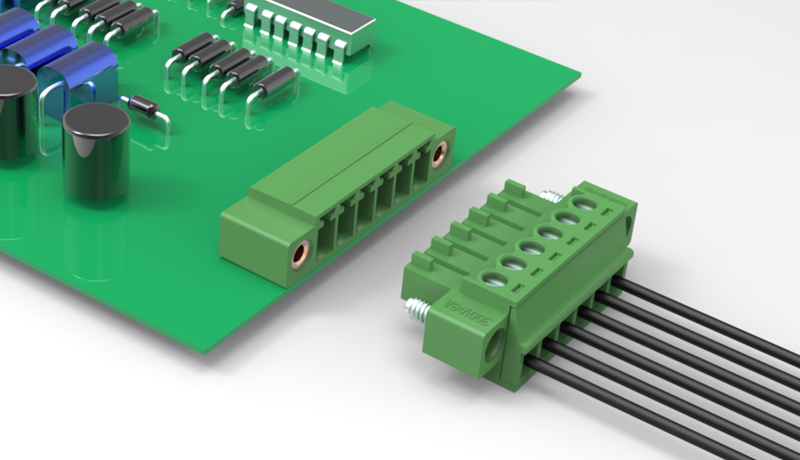

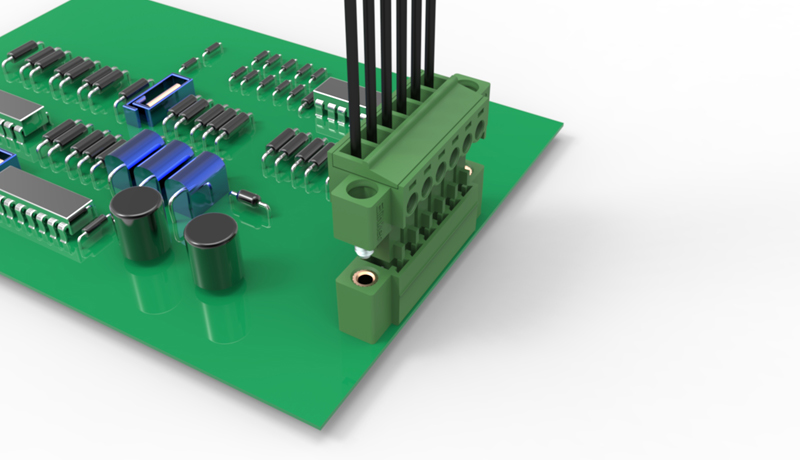

 LZ1RM-3.5/3.81 terminal blocks LZ1VM-3.5/3.81 terminal blocks   LZ2DM-3.5/3.81 terminal blocks LC10M-3.81 terminal blocks  LC18-3.81 terminal blocks

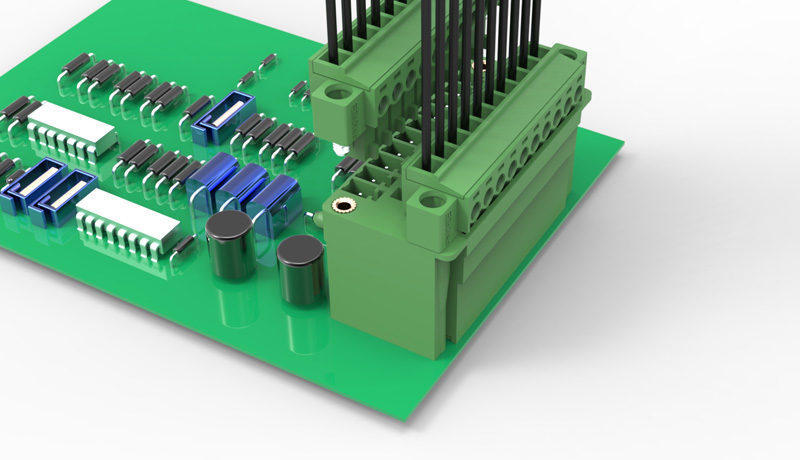

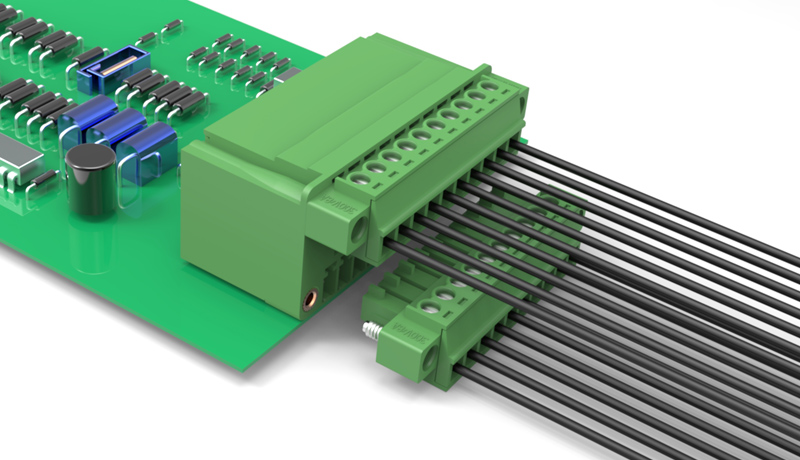

 LZ3RHM-3.5/3.81 terminal blocks LZ3VHM-3.5/3.81 terminal blocks   LZ5M-3.81 terminal blocks
