  • LC1M-5.0/5.08
  • Rated voltage(v):
    320

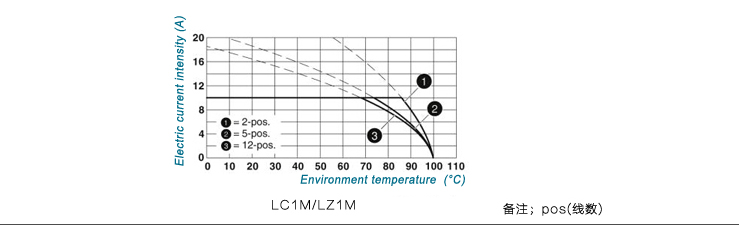

  • Rated current(A):
    17.5
  • Wire Size(m㎡):
    2.5
  • Wire Size(AWG):
    24-12
  • Single/multi-core diameter(m㎡):
    0.2-2.5
  • Maximum tightening torque(Nm):
    0.5-0.6
  • Screw:
    M3
  • Strip length:
    7
  • Resistant voltage(kv):
    4
  • Insulation Resistance:
    PA/V0
  • Poles(P):
    2-24

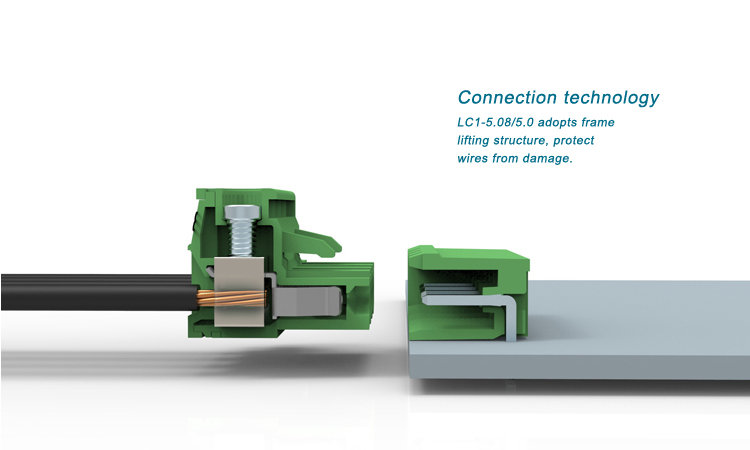

Introduction of LC Series pluggable terminal blocks:



terminal wire connectors

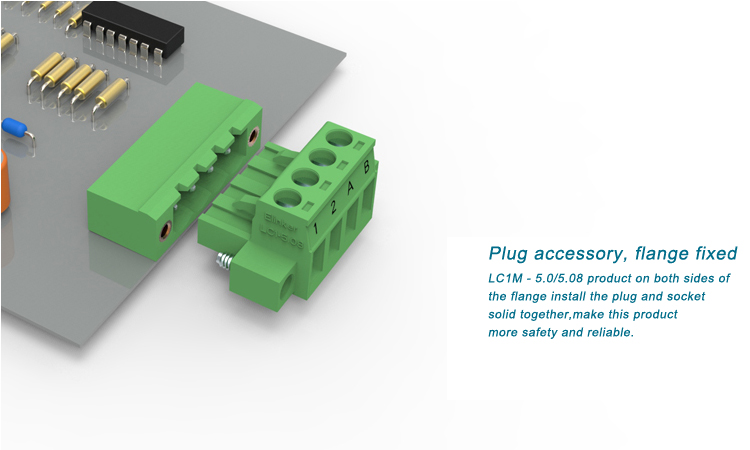

Product Advantage



■ Small space , save space

■ Low structural height

■ Big connection capacity, can connect flexible conductor of 2.5mm2 cross-sectional area

■ Identity protection

terminal blocks

electric connectors



terminal block connectors

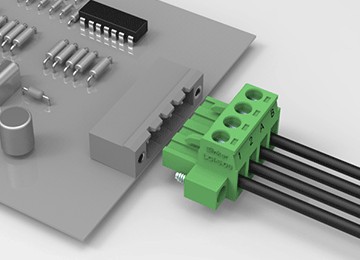

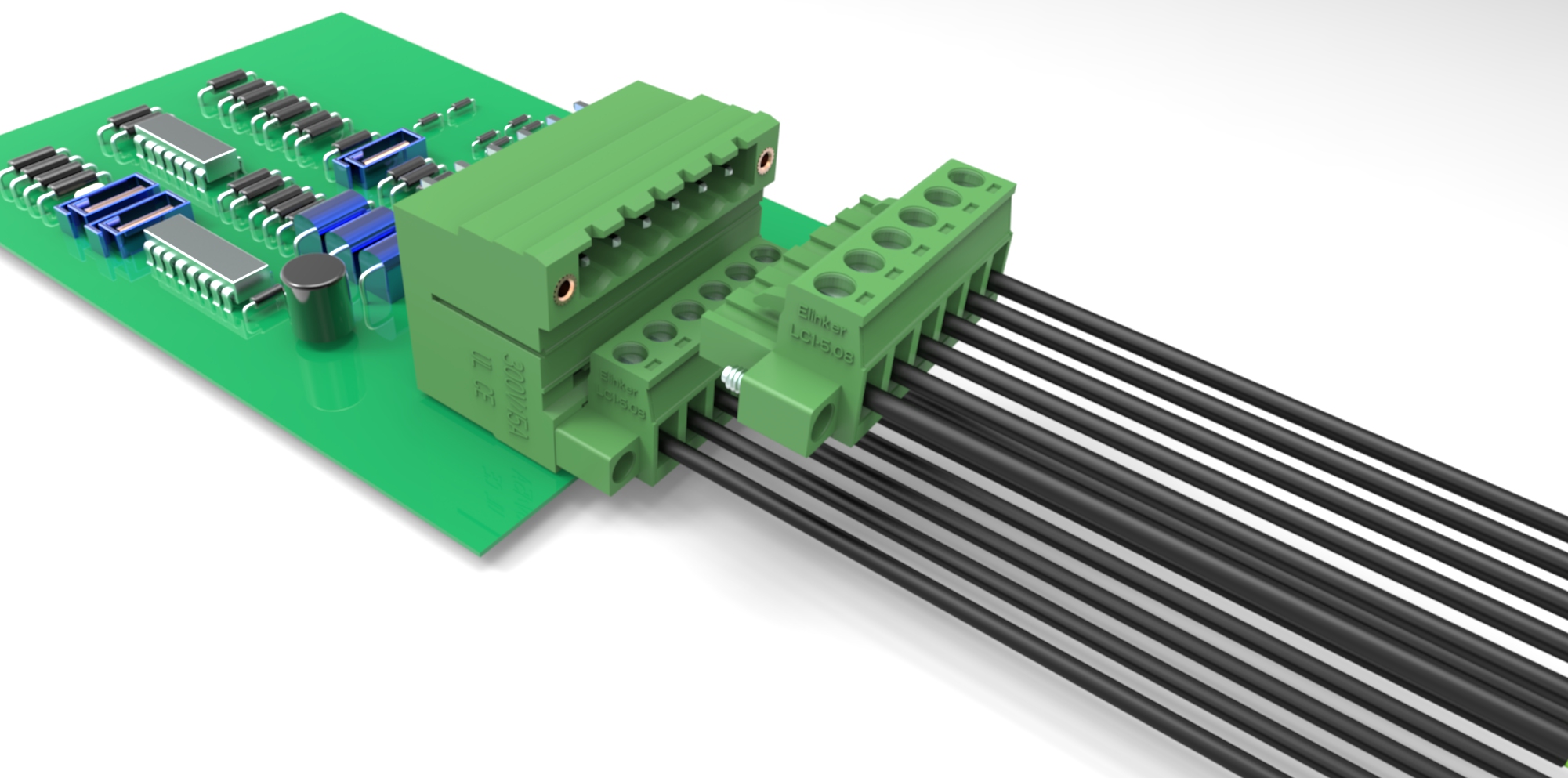

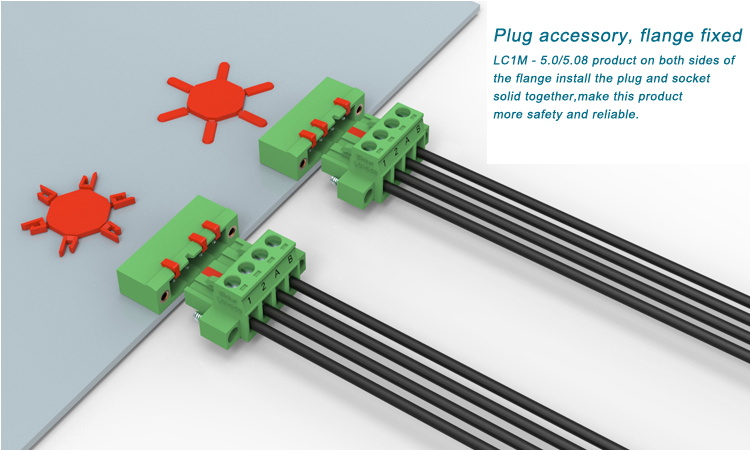

Assembly of LC1M-5.0/5.08:

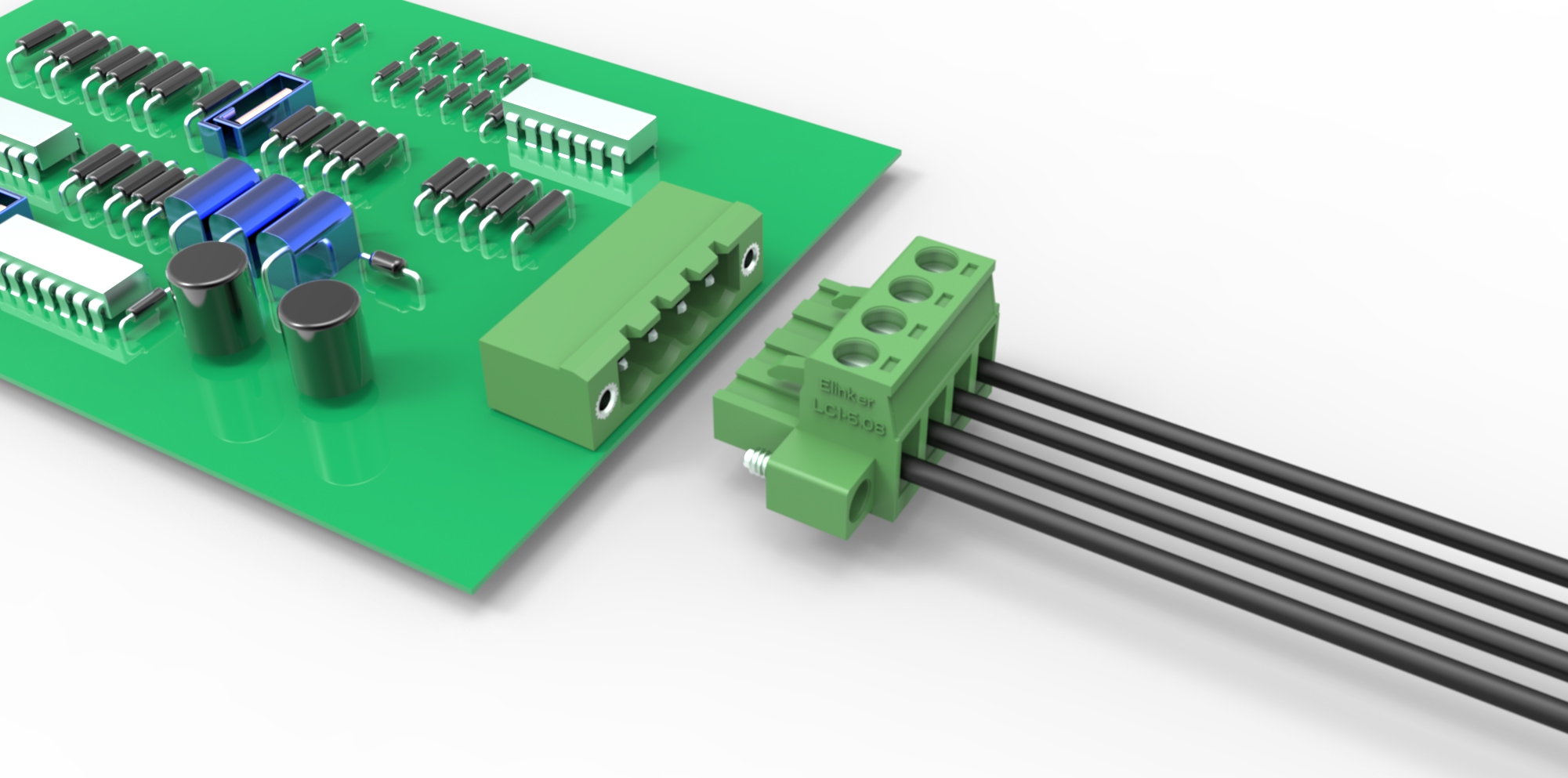

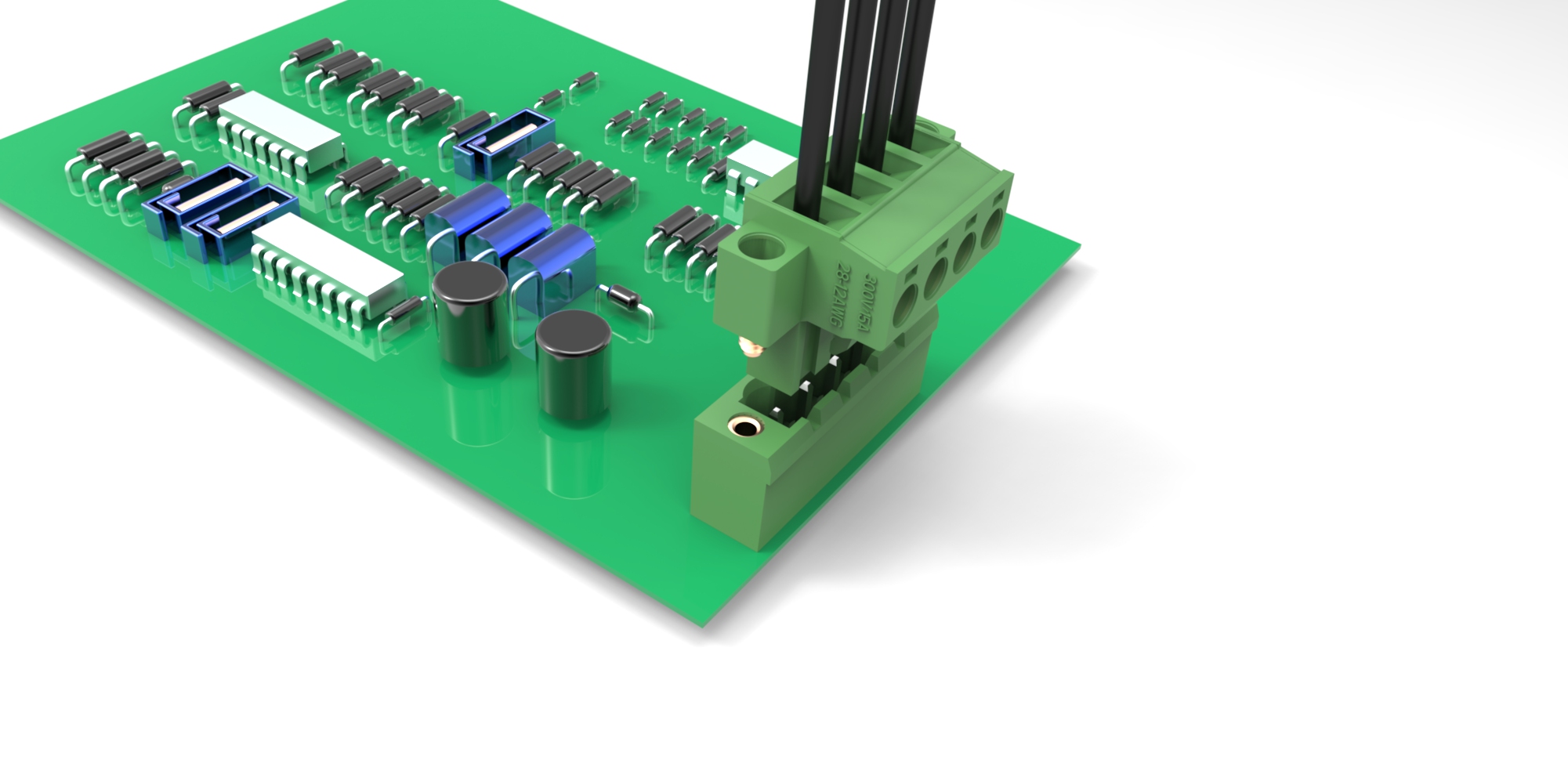

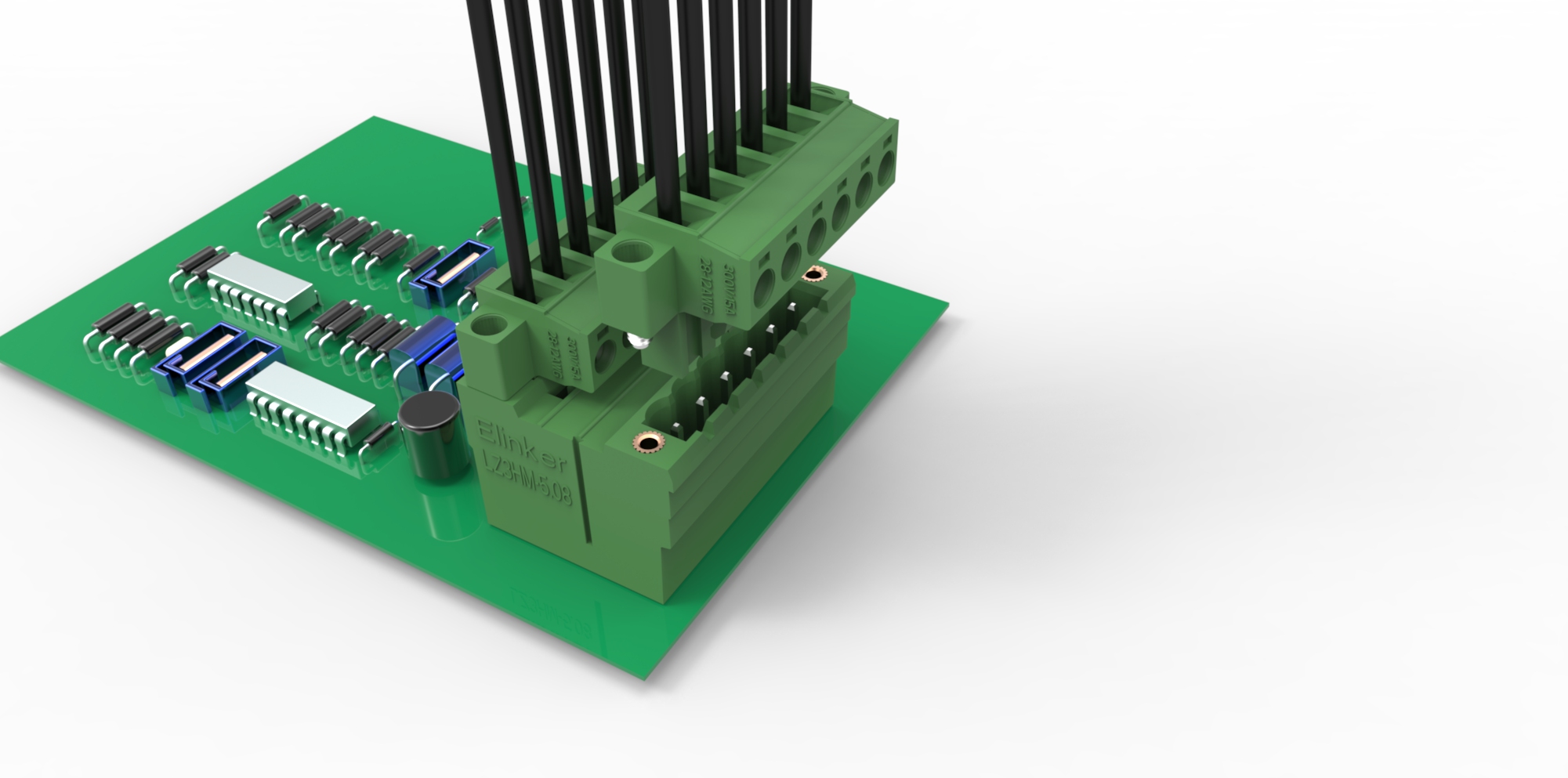

 LZ1RM-5.0/5.08 terminal blocks LZ1VM-5.0/5.08 terminal blocks  LZ3RTM-5.0/5.08 terminal blocks  LZ3VTM-5.0/5.08 terminal blocks  LC18M-5.08 terminal blocks
LC19UM-5.08 terminal blocks


Product Applications Scenarios:
