  • LC2AM-5.0/5.08
  • Rated voltage(v):
    320
  • Rated current(A):
    17.5
  • Wire Size(m㎡):
    2.5
  • Wire Size(AWG):
    24-12
  • Single/multi-core diameter(m㎡):
    0.2-2.5
  • Maximum tightening torque(Nm):
    0.5-0.6
  • Screw:
    M3
  • Strip length:
    7
  • Resistant voltage(kv):
    4
  • Insulation Resistance:
    PA/V0
  • Poles(P):
    2-24

LC2 Series Description:



terminal block connectors



Product Advantage



▇ Small space , save space

▇ Low structural height

▇ Big connection capacity, can connect flexible conductor of 2.5mm2 cross-sectional area

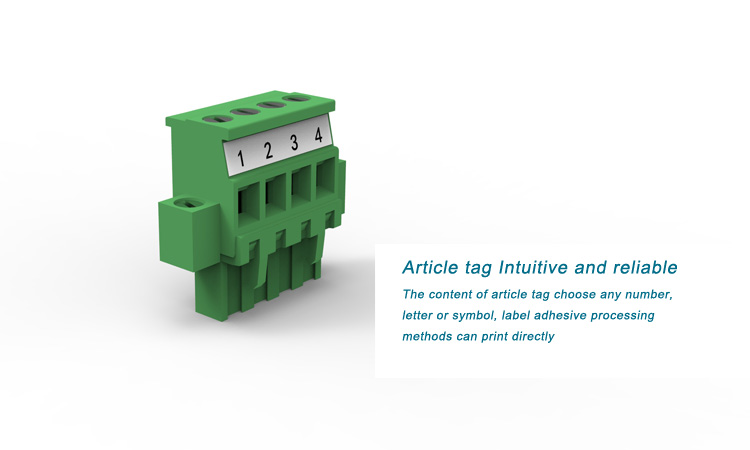

▇ The plug socket identity protection



pluggable connectors



electric terminal blocks

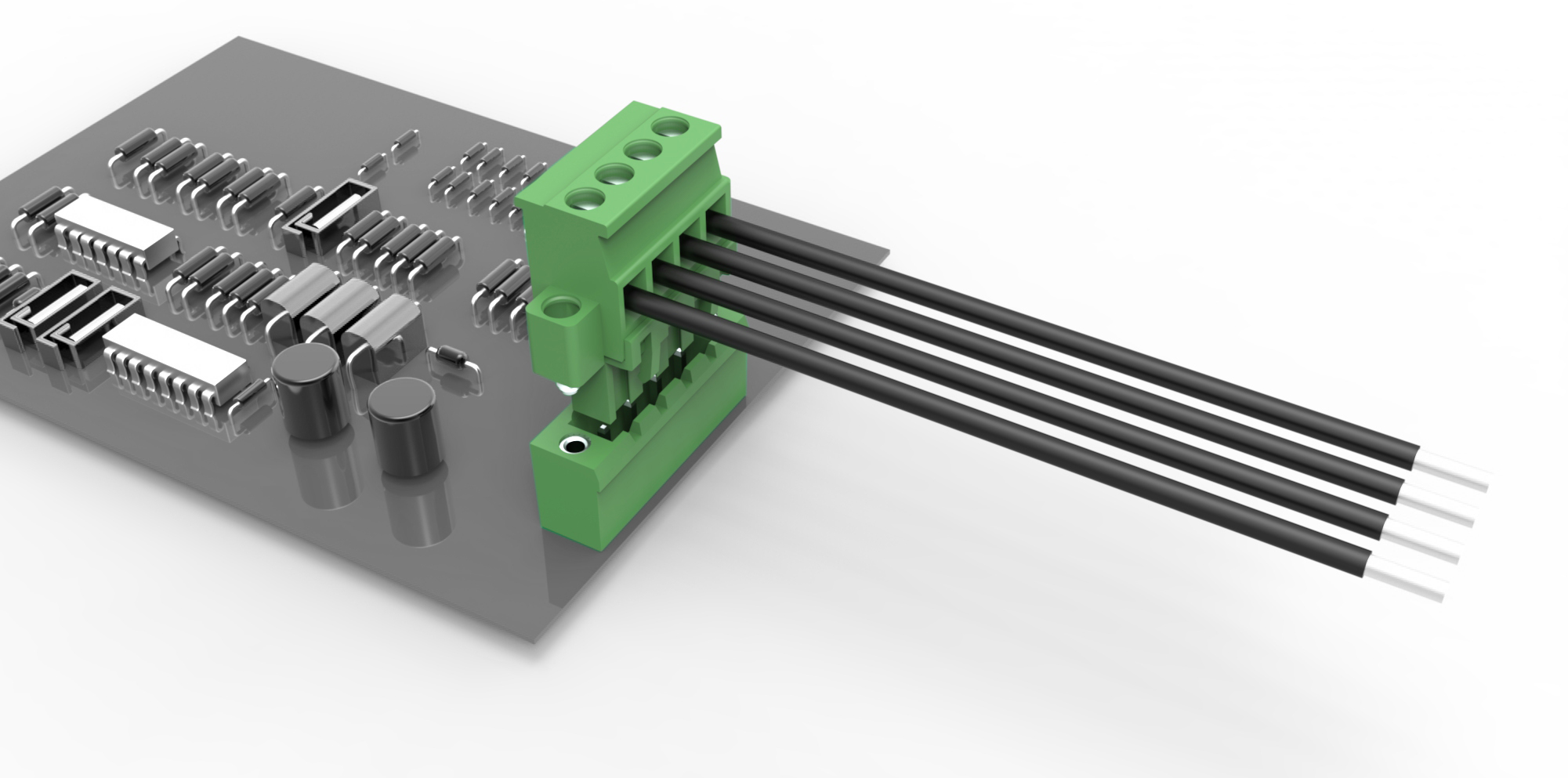

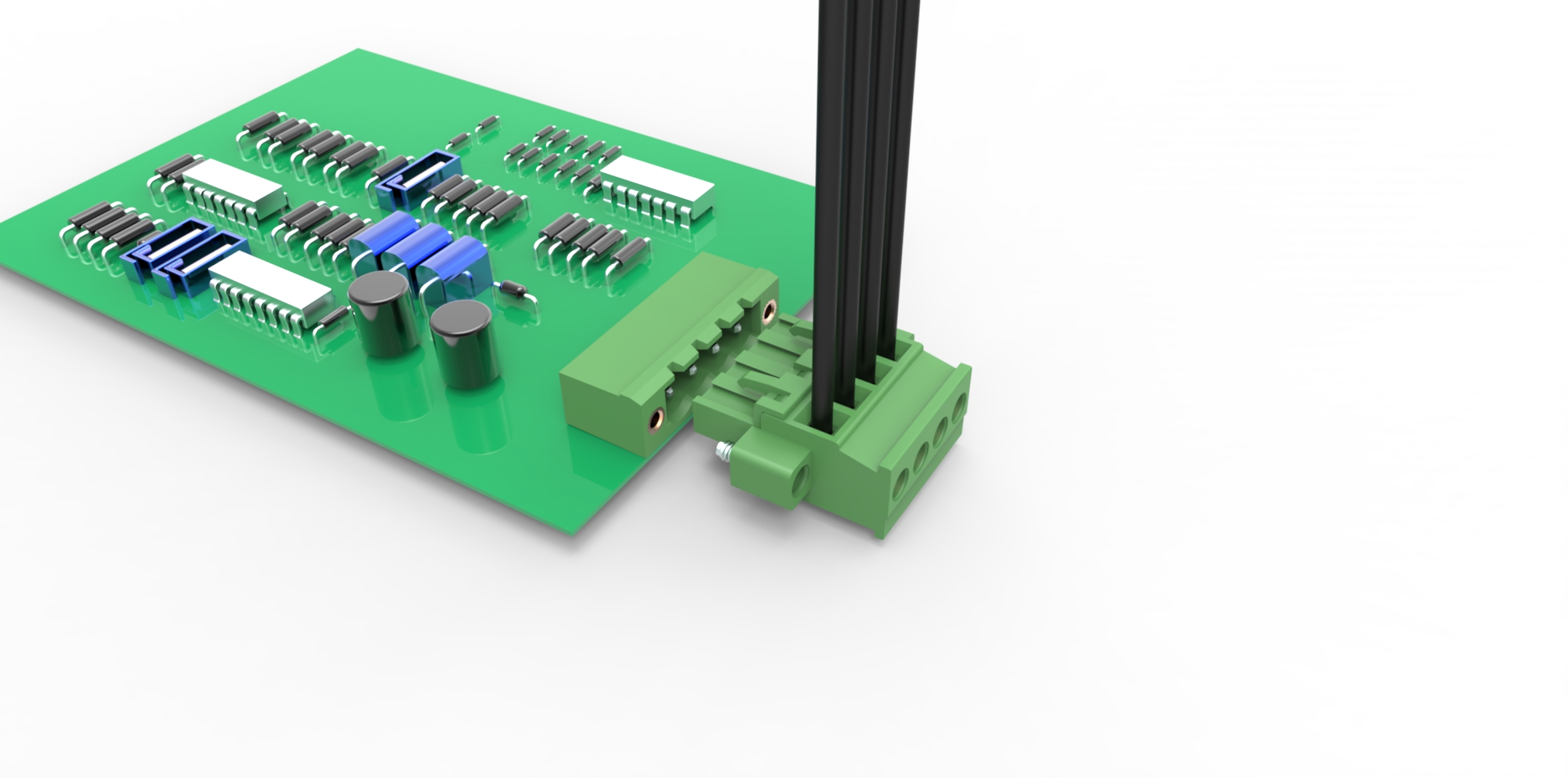

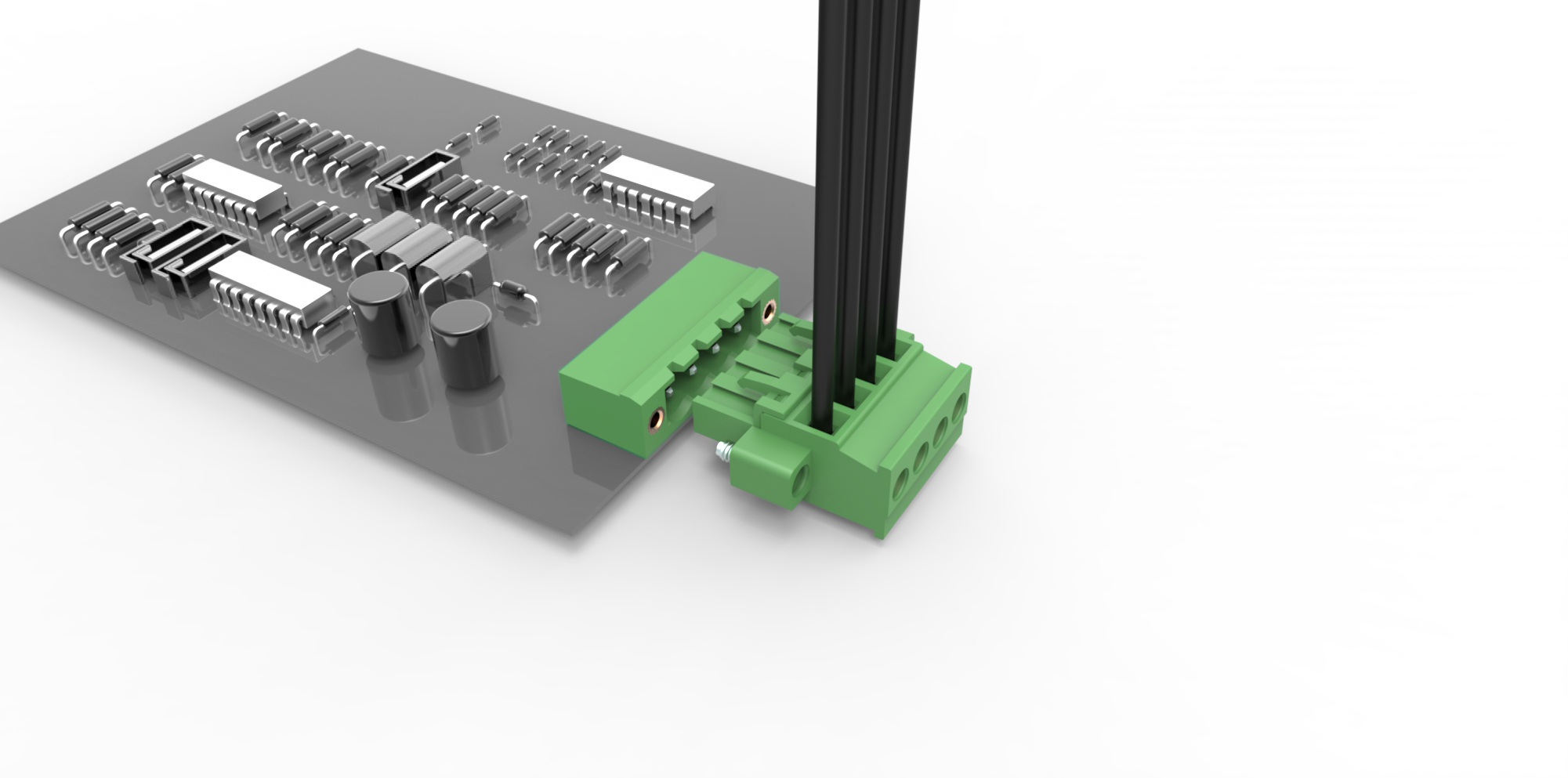

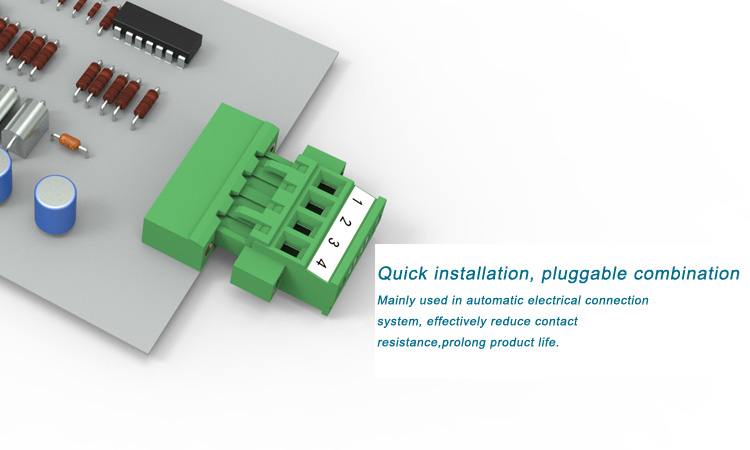

Assembly of LC2AM-5.0/5.08:





 LZ1RM-5.0/5.08 terminal blocks LZ1VM-5.0/5.08 terminal blocks  LZ3RTM-5.0/5.08 terminal blocks  LZ3VTM-5.0/5.08 terminal blocks  LC18M-5.08 terminal blocks
LC19UM-5.08 terminal blocks



Product Applications Scenarios:
