- LC19UM-5.08
-
Rated voltage(v):320
-
Rated current(A):20
-
Wire Size(m㎡):2.5
-
Wire Size(AWG):24-12
-
Single/multi-core diameter(m㎡):0.2-2.5
-
Maximum tightening torque(Nm):0.5-0.6
-
Screw:M3
-
Strip length:7
-
Resistant voltage(kv):4
-
Insulation Resistance:PA/V0
-
Poles(P):2-24
LC19 Series Description:
Product Advantage
▇ Small space , save space
▇ Low structural height
▇ Big connection capacity, can connect flexible conductor of 2.5mm2 cross-sectional area
▇ The plug socket identity protection

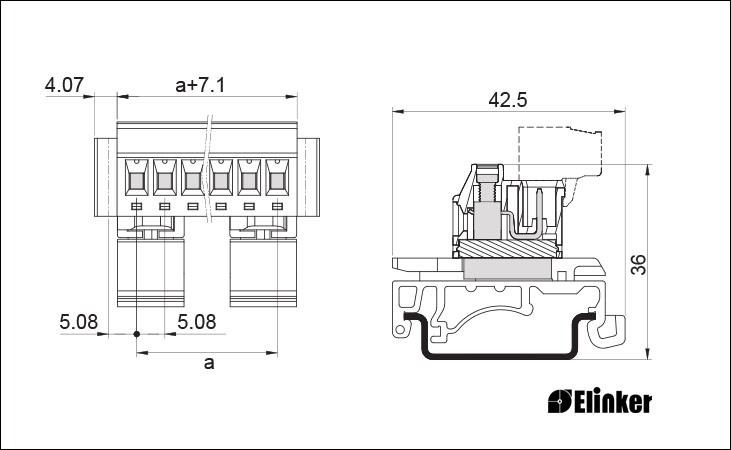

Aseembly of LC19UM-5.08:
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
