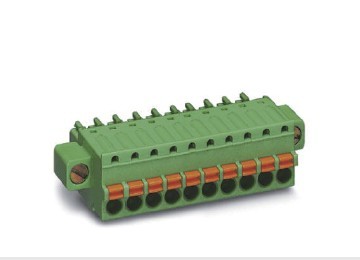

LC6 Series Description:

LC6 series are with spring connection technology. Such spring plug with 2-24 poles can bereplaced as LC1 series plug, and used in conjunction with the LZ1 plug.There is a test jack in the open side of all the spring plugs. In the shell wall there is a row of insulation against finger touch test holes, which can also be used to complete these tests correspond to wire-bit test.In the spring connection the wires are simply directly inserted into the wiring bit.Used in conjunction with the corresponding socket connections it may constitute a shock.The height of LC6H series plug is evenly on both sides of the PCB on the line.

Diagram and parameter description:

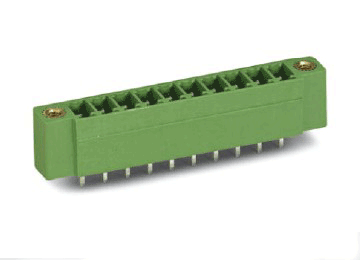

Assembly of LC6M-3.5/3.81：
