  • LC6H-5.0/5.08
  • Rated voltage(v):
    630
  • Rated current(A):
    15
  • Wire Size(m㎡):
    2.5
  • Wire Size(AWG):
    24-12
  • Single/multi-core diameter(m㎡):
    0.2-2.5
  • Strip length:
    10
  • Resistant voltage(kv):
    4
  • Insulation Resistance:
    PA/V0
  • Poles(P):
    2-24


LC6 Series Description:



LC6 series are with spring connection technology. Such spring plug with 2-24 poles can bereplaced as LC1 series plug, and used in conjunction with the LZ1 plug.There is a test jack in the open side of all the spring plugs. In the shell wall there is a row of insulation against finger touch test holes, which can also be used to complete these tests correspond to wire-bit test.In the spring connection the wires are simply directly inserted into the wiring bit.Used in conjunction with the corresponding socket connections it may constitute a shock.The height of LC6H series plug is evenly on both sides of the PCB on the line.




Diagram and parameter description:

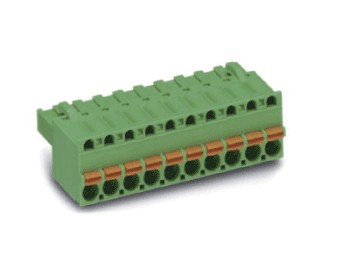

Assembly of LC6H-5.0/5.08:
