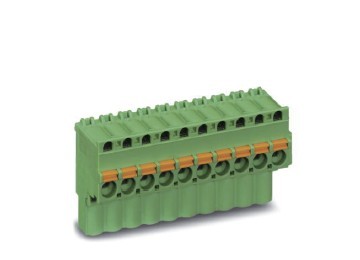

  • LC7B-5.0/5.08
  • Rated voltage(v):
    320
  • Rated current(A):
    15
  • Wire Size(m㎡):
    2.5
  • Wire Size(AWG):
    24-12
  • Single/multi-core diameter(m㎡):
    0.2-2.5
  • Strip length:
    10
  • Resistant voltage(kv):
    4
  • Insulation Resistance:
    PA/V0
  • Poles(P):
    2-24

LC7 Series Description:



The wiring direction of LC7 series is perpendicular to the push-plug direction, to prevent the wire be squeezed in operation. Plug-and-Play wiring can achieve the fast connection for the rigid and flexible wires. There is a test hole in the side of the terminal. The products, which are fixed by srews in the side, have the anti-off function. They can be marked with stickers. We can provide 7.5/7.62 pitch;



Diagram and parameter description:







Aseembly of LC7B-5.0/5.08:
