- LC10-7.62
-
Rated voltage(v):630
-
Rated current(A):20
-
Wire Size(m㎡):2.5
-
Wire Size(AWG):24-12
-
Single/multi-core diameter(m㎡):0.25-2.5
-
Maximum tightening torque(Nm):0.5-0.6
-
Screw:M3
-
Strip length:10
-
Resistant voltage(kv):4
-
Insulation Resistance:PA/V0
-
Poles(P):2-24
LC10-7.62 Series pluggable terminal blocks:
The prominent feature of LC10 series is, that they can be pluged with other LC series with a rich variety of wiring methods. LC10 series have 3.5, 3.81, 5.0, 5.08, 7.5, 7.62 pitch. LC10 LC11 series can be used in conjunction with LZ5X series together,to be installed on the panel.

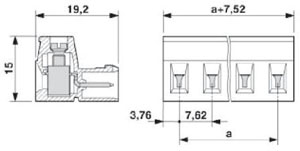

Diagram and parameter description:
Aseembly of LC10-7.62：
