  • LW1C-7.62
  • Rated voltage(v):
    300
  • Rated current(A):
    15
  • Wire Size(m㎡):
    22-14
  • Maximum tightening torque(Nm):
    0.8N.m 10.6Lb.in
  • Screw:
    Steel,M3 Ni-Plated
  • Resistant voltage(kv):
    2
  • Housing:
    PA66 UL 94V-0

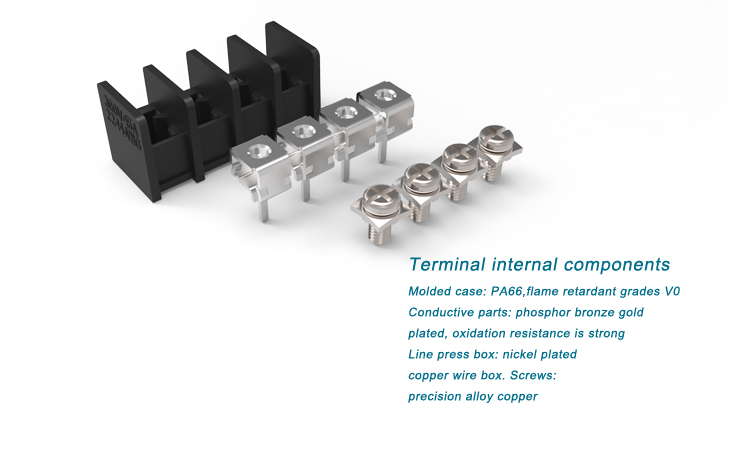

  • Terminal:
    Brass,0.8t,Tin-Plated
  • Temp.Range
    -40℃~+105℃
  • Torque:
    500MΩ/DC500V

Products Description:

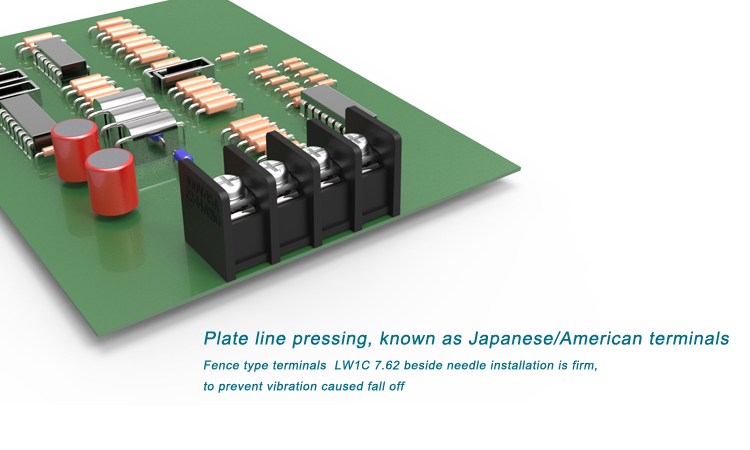

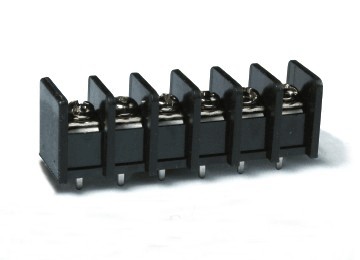

Barrier terminal blocks



Product Advantage



▇  Small space , save space

▇  Low structural height

▇  Big connection capacity, can connect flexible conductor of 2.5mm2 cross-sectional area



▇  The plug socket identity protection
