products categories
Products Location:Home >> Products

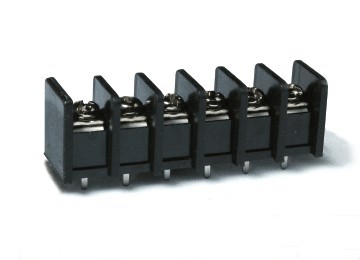

  • LW1B-7.62
  • Rated voltage(v):
    300
  • Rated current(A):
    15
  • Wire Size(m㎡):
    22-14
  • Maximum tightening torque(Nm):
    0.8N.m 10.6Lb.in
  • Screw:
    Steel,M3 Ni-Plated
  • Resistant voltage(kv):
    2
  • Housing:
    PA66 UL 94V-0
  • Terminal:
    Brass,0.8t,Tin-Plated
  • Temp.Range
    -40℃~+105℃
  • Torque:
    500MΩ/DC500V

Products Description:

 terminals



Product Advantage



▇ Small space , save space

▇ Low structural height

▇ Big connection capacity, can connect flexible conductor of 2.5mm2 cross-sectional area



▇ The plug socket identity protection



terminals
