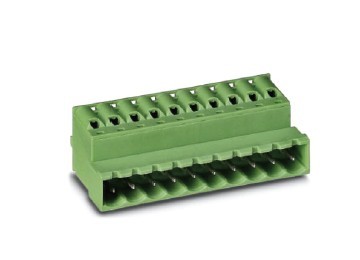

- LC10MG-7.62
-
Rated voltage(v):630
-
Rated current(A):20
-
Wire Size(m㎡):2.5
-
Wire Size(AWG):24-12
-
Single/multi-core diameter(m㎡):0.2-2.5
-
Maximum tightening torque(Nm):0.5-0.6
-
Screw:M3
-
Strip length:10
-
Resistant voltage(kv):4
-
Insulation Resistance:PA/V0
-
Poles(P):2-24
LC10 Series Description:
The prominent feature of LC10 series is, that they can be pluged with other LC series with a rich variety of wiring methods. LC10 series have 3.5, 3.81, 5.0, 5.08, 7.5, 7.62 pitch. L10M and LZ5x series can be used in conjunction with each other, and can be installed on the panel. LC10M and LC10MG series are with screws and nuts, seismic connections. LC10 series can be used in conjunction with LZ5X series together,to be installed on the panel.
Diagram and parameter description:
Aseembly of LC10MG-7.62：
 |
 |
 |
 |
 |
 |
 |
