  • LG128-5.0/5.08
  • Rated voltage(v):
    400
  • Rated current(A):
    17.5
  • Wire Size(m㎡):
    1.5
  • Wire Size(AWG):
    26-14
  • Single/multi-core diameter(m㎡):
    0.14-1.5/0.14-1.5
  • Maximum tightening torque(Nm):
    0.5-0.6
  • Screw:
    3
  • Strip length:
    6
  • Resistant voltage(kv):
    4
  • Insulation Resistance:
    PA/V0
  • Poles(P):
    2-24

LG128-5.0/LG128-5.08 sold terminal blockLG128-5.0/LG128-5.08 sold terminal block



Products Description:

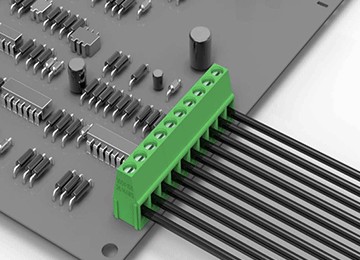

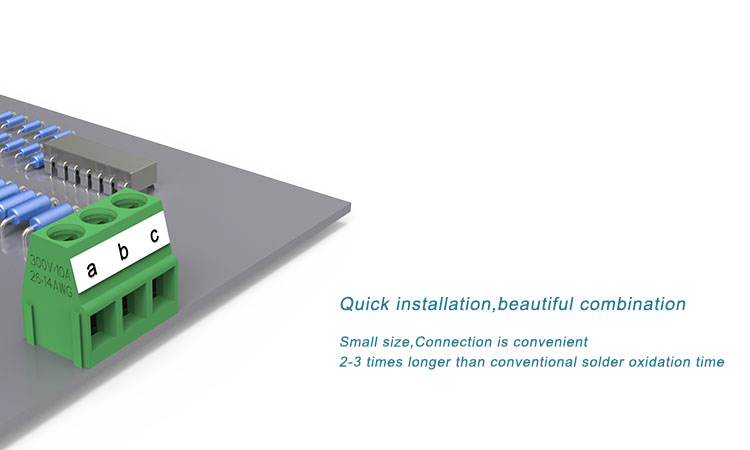

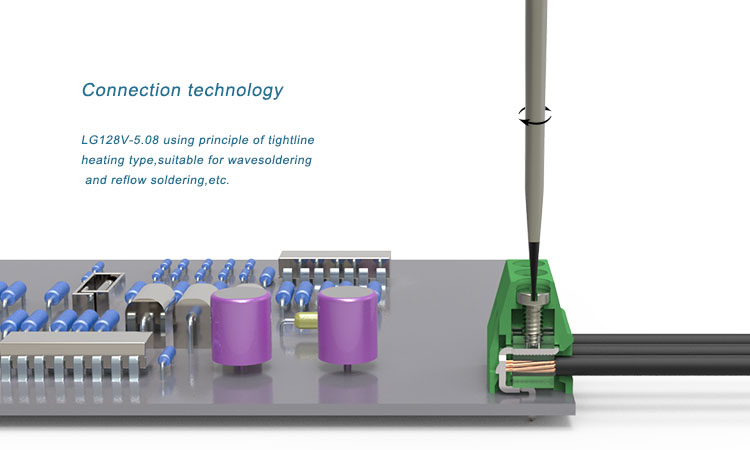

■ LG series products are mainly characterized by the monomer and the circuit board soldering and wiring easy, and reliable screw connection.

■ The pitch is 2.54, 3.5, 3.81, 5.0, 5.08, 6.35, 7.5, 7.62, 9.52, 12.7, and so on.

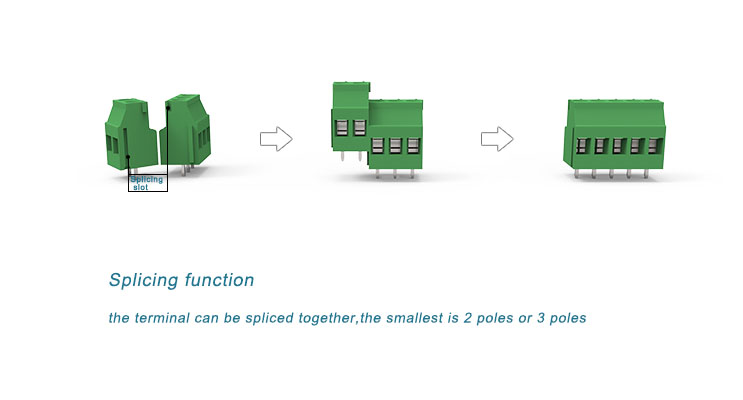

■ The product can be combined with 3P and 2P.

■ The products without stitching are also available. The wiring directions are front, side, slope and other different styles.



LG128-5.0/LG128-5.08 sold terminal block LG128-5.0/LG128-5.08 sold terminal block

LG128-5.0/LG128-5.08 sold terminal block

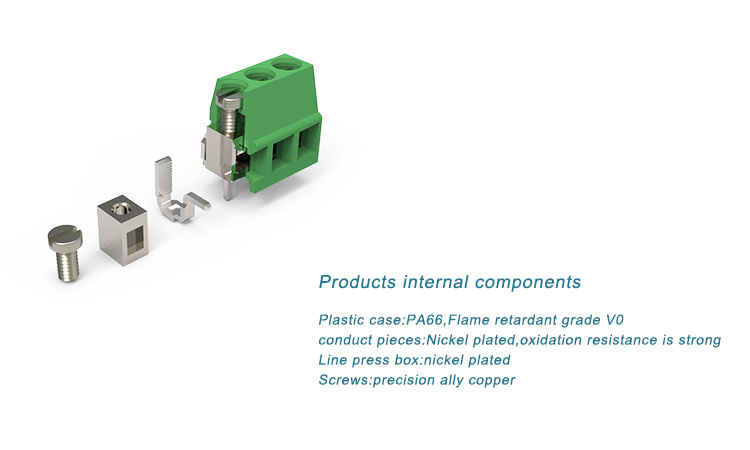

Diagram and parameter description:
