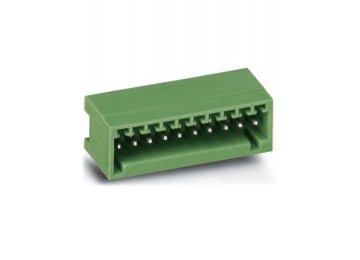

  • LZ1R-2.5
  • Rated voltage(v):
    160
  • Rated current(A):
    4
  • Resistant voltage(kv):
    2.5
  • Insulation Resistance:
    PA/V0
  • Poles(P):
    2-24

Products Description:




The angle of the socket direction and PCB is 45 degrees. It is easy to operate when the space is limited, and it will not occupy the entire horizontal space. The side can be with a screw or without screw bit. The side is divided into closed and not closed type.

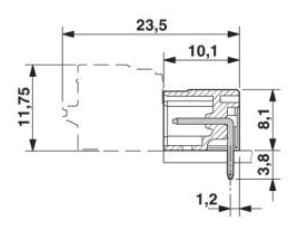

Diagram and parameter description:







Aseembly of LZ1R-2.5:

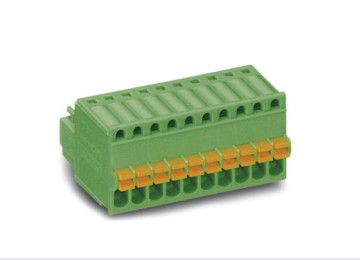

LC6-2.5 terminal blocks
