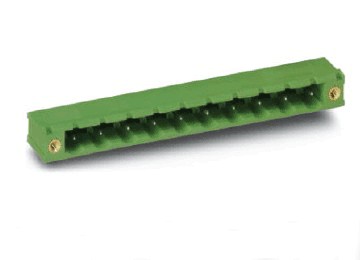

  • LZ1RM-7.5/7.62
  • Rated voltage(v):
    630
  • Rated current(A):
    17.5
  • Resistant voltage(kv):
    6
  • Insulation Resistance:
    PA/V0
  • Poles(P):
    2-24


Products Description:


The angle of the socket direction and PCB is 45 degrees. It is easy to operate when the space is limited, and it will not occupy the entire horizontal space. The side can be with a screw or without screw bit. The side is divided into closed and not closed type.



Diagram and parameter description:







Assembly of LZ1RM-7.5/7.62:



 LC1M-7.5/7.62 terminal blocks  LC2AM-7.5/7.62 terminal blocks  LC2BM-7.5/7.62 terminal blocks  LC3M-7.5/7.62 terminal blocks  LC6M-7.5/7.62 terminal blocks
 LC12RM-7.5/7.62 terminal blocks  LC12VM-7.5/7.62 terminal blocks
